Product Description:

The DS1800 is a 1U, 2 in 4 out, or 1 in 8 out Distribution Amplifier.

Key Features and Benefits:

• Front Panel
  Independent volume control to adjust each channel (concealed controls)
  LED indicator for mode selection
  LED signal indicators\
• Rear Panel
  2 x Balanced XLR input connectors
  8 x Balanced XLR output connectors
  2 x XLR link connectors
  Mode switch for 2 x 4 or 1 x 8























Panel:



Specifications
Input Connector	2 x Balanced XLR
Input Impedance	8 x Balanced XLR, 2 x Balanced XLR Link
Maximum Output Levels	Balanced 10kΩ
Max.Output Level	≥ + 20dB
Frequency Response (±0.3dB)	20Hz-20kHz
THD + N	<0.008%
S/N Ratio (A weight)	>100dB
Dynamic Range	≥ 115dB
Power Consumption	<8W
Power Supply	220V 50Hz
Dimensions (W x D x H)	483mm (19”) x 172mm (6.8”) x 45mm (1.8”)
Net Weight (1 piece/pack)	2.5kg (5.5lb)
Gross Weight (1 piece/pack)	3.5kg (7.7lb)

Write a review

Your Name

Your Review

Note: HTML is not translated!

Rating     Bad           Good

Captcha

Enter the code in the box below

Continue

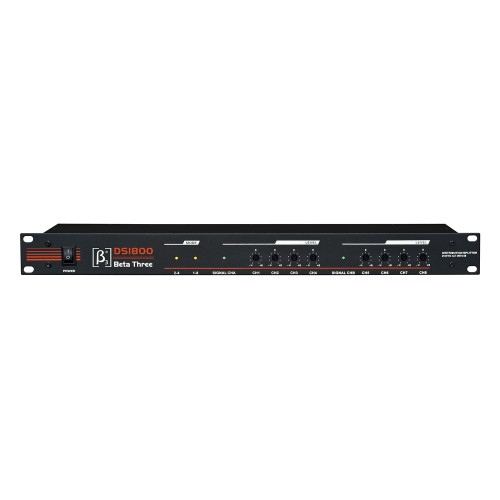

Beta Three DS1800
