Description

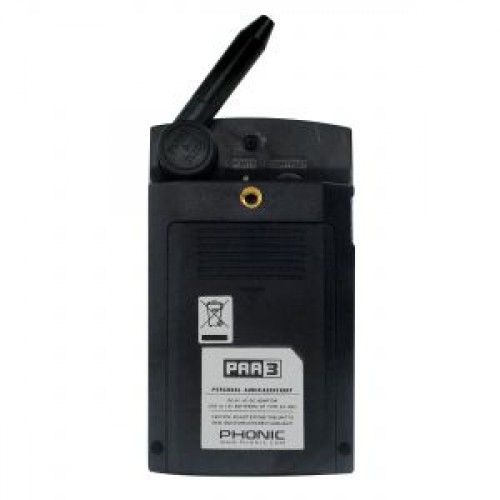

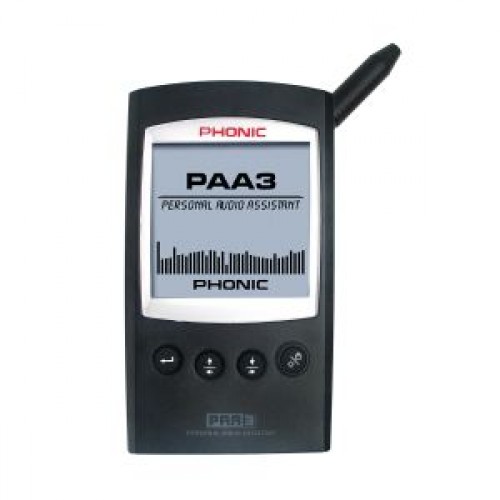

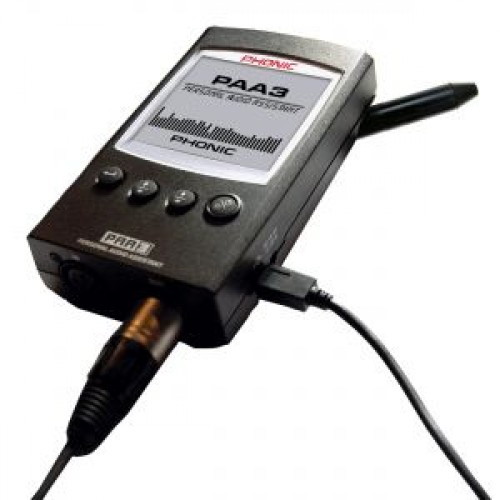

The PAA3 is a highly accurate handheld audio analyzer that gives sound engineers a rich array of sound analysis tools. Features include 31-band real time spectrum analysis, RT60, SPL and line meter, internal generator, EQ setting program, microphone calibration and speaker phase checking abilities. All functions and menus can be accessed through a central jog dial, leaving your other hand free to adjust audio settings. Easily upload information and settings to your computer via the built-in USB interface. The large LCD screen has a visible backlight to help you see in a
dark performance environment. And with a battery life of 7 hours, the PAA3 is the multifunctional tool for every serious audio engineer.

Features

• 31-band Real Time Spectrum Analyzer
• 31-band EQ setting value display (Boost/Cut)
• RT60 measurement
• Built-in calibrated measurement microphone
• Phase checker
• Noise generator with pink noise, 1KHz and polarity test signal, balanced output
• Memory and average calculation function
• SPL meter calibration through sound level calibrator
• Sound Pressure Level Meter from 30 dB~130 dB
